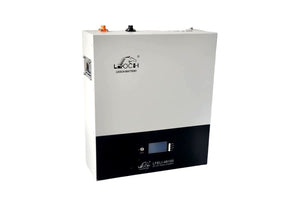

Leoch Lithium Wall-mounted Battery 11.7kWh
The Leoch 11.7kWh lithium wall-mounted battery is a premium energy storage solution designed for modern homes and businesses. Featuring high-capacity storage in a sleek wall-mounted design, this system combines advanced lithium iron phosphate technology with sophisticated management systems to deliver reliable, efficient power when you need it most.
Key Features
- High-capacity 11.7kWh lithium storage in space-saving wall-mounted design
- Premium LiFePO4 battery cells ensuring safety and longevity
- Advanced Battery Management System for optimal performance and protection
- Easy installation with wall-mounting brackets
- Expandable design allowing for system growth
- Integrated thermal management system
- Compatible with major inverter brands and solar systems
- High-resolution display for real-time monitoring
Applications
- Residential solar energy storage
- Small commercial power backup
- Off-grid power systems
- Energy arbitrage applications
- Peak shaving for reduced electricity costs
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 230Ah |
| Energy Capacity | 11.7kWh |
| Battery Chemistry | LiFePO4 |
| Cycle Life | >6,000 cycles @ 80% DoD |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Operating Temperature | -10C to 50C |
| Storage Temperature | -20C to 60C |
| IP Rating | IP65 |
| Dimensions (WxHxD) | 650 x 550 x 200 mm |
| Weight | 120 kg |
| Communication Protocol | RS485/CAN |
| Display | LCD touch screen |
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
230Ah
Cycle Life
>6,000 cycles @ 80% DoD
Battery Chemistry
LiFePO4
Max Discharge Current
100A
Operating Temperature
-10C to 50C
IP Rating
IP65
Rated AC Power
10 kVA
Battery Capacity
11.7 kWh
