Description
SunGiga JKS-215KLAA-100PLAA Battery System
The Jinko SunGiga JKS-215KLAA-100PLAA represents the pinnacle of residential and light commercial energy storage technology. This versatile 5.12kWh system combines cutting-edge lithium-ion phosphate chemistry with intelligent management systems to deliver safe, efficient, and long-lasting energy storage for modern power needs.
Key Features
- High-performance LFP battery cells with superior safety profile
- Modular design for easy scalability and system expansion
- Integrated Battery Management System for real-time monitoring and protection
- Smart connectivity with major inverter platforms
- Flexible installation options - wall-mount or floor-standing
- Advanced thermal management for optimal operation
- High discharge capabilities for demanding applications
Safety Features
- Multi-level protection against overcharging and deep discharge
- Intelligent temperature monitoring and management
- Short circuit and overcurrent protection
- Self-diagnostic capabilities
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy Capacity | 5.12kWh |
| Battery Chemistry | LiFePO4 |
| Maximum Continuous Charge Current | 50A |
| Maximum Continuous Discharge Current | 50A |
| Peak Discharge Current | 100A (30s) |
| Cycle Life | >6,000 cycles @ 90% DoD |
| Operating Temperature | -10C to 55C |
| IP Rating | IP65 |
| Communication | RS485/CAN |
| Dimensions (WxHxD) | 474 x 415 x 150 mm |
| Weight | 55 kg |
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Cycle Life
>6,000 cycles @ 90% DoD
Battery Chemistry
LiFePO4
Max Discharge Current
50A
Operating Temperature
-10C to 55C
IP Rating
IP65
Rated AC Power
5 kVA
Battery Capacity
5.12 kWh
Description
SunGiga JKS-215KLAA-100PLAA Battery System
The Jinko SunGiga JKS-215KLAA-100PLAA represents the pinnacle of residential and light commercial energy storage technology. This versatile 5.12kWh system combines cutting-edge lithium-ion phosphate chemistry with intelligent management systems to deliver safe, efficient, and long-lasting energy storage for modern power needs.
Key Features
- High-performance LFP battery cells with superior safety profile
- Modular design for easy scalability and system expansion
- Integrated Battery Management System for real-time monitoring and protection
- Smart connectivity with major inverter platforms
- Flexible installation options - wall-mount or floor-standing
- Advanced thermal management for optimal operation
- High discharge capabilities for demanding applications
Safety Features
- Multi-level protection against overcharging and deep discharge
- Intelligent temperature monitoring and management
- Short circuit and overcurrent protection
- Self-diagnostic capabilities
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy Capacity | 5.12kWh |
| Battery Chemistry | LiFePO4 |
| Maximum Continuous Charge Current | 50A |
| Maximum Continuous Discharge Current | 50A |
| Peak Discharge Current | 100A (30s) |
| Cycle Life | >6,000 cycles @ 90% DoD |
| Operating Temperature | -10C to 55C |
| IP Rating | IP65 |
| Communication | RS485/CAN |
| Dimensions (WxHxD) | 474 x 415 x 150 mm |
| Weight | 55 kg |
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Cycle Life
>6,000 cycles @ 90% DoD
Battery Chemistry
LiFePO4
Max Discharge Current
50A
Operating Temperature
-10C to 55C
IP Rating
IP65
Rated AC Power
5 kVA
Battery Capacity
5.12 kWh

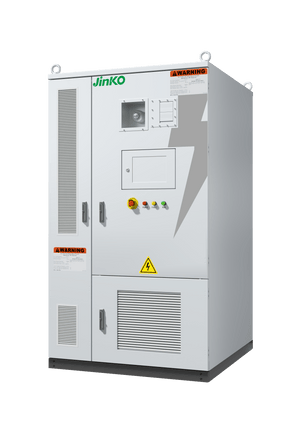

Jinko SunGiga JKS-215KLAA-100PLAA
Shipping calculated at checkout.
High-performance lithium battery storage providing reliable energy solutions with advanced safety features and long cycle life.
High-performance lithium battery storage providing reliable energy solutions with advanced safety features and long cycle life.
Request Quote
Couldn't load pickup availability
Battery Capacity
5.12 kWh
